Author Topic: DOREMI SM VERTION MISSING
Annli Com
Expert Film Handler

Posts: 140
From: ShibuPaul-India
Registered: May 2014


 - posted 09-28-2014 11:15 PM      Profile for Annli Com   Author's Homepage   Email Annli Com   Send New Private Message       Edit/Delete Post
Dear all

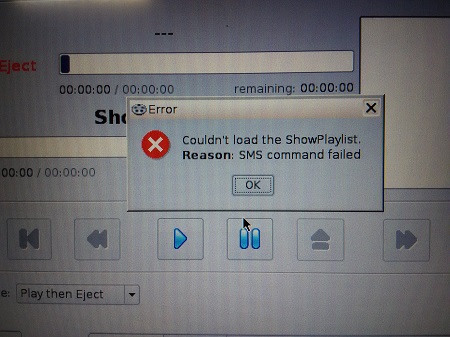

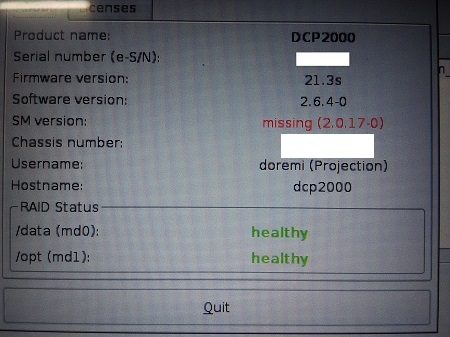

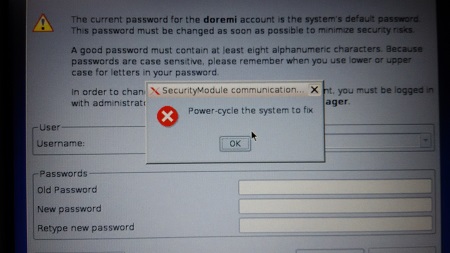

Our one Doremi DCP 2000 Sever Daily On time Some massage displayed and Sm vertion is missing ,after reset the dolphin card solve the problem
Kindly replay for one good resolution the problem

Shibupaul

 -

 -

 -

 |  IP: Logged

Marcel Birgelen
Film God

Posts: 3357
From: Maastricht, Limburg, Netherlands
Registered: Feb 2012


 - posted 09-29-2014 02:01 AM      Profile for Marcel Birgelen   Email Marcel Birgelen   Send New Private Message       Edit/Delete Post
Was this, up until now, a one-time thing or does it keep returning now and then?

 |  IP: Logged

Annli Com
Expert Film Handler

Posts: 140
From: ShibuPaul-India
Registered: May 2014


 - posted 09-29-2014 02:26 AM      Profile for Annli Com   Author's Homepage   Email Annli Com   Send New Private Message       Edit/Delete Post
This problem startS Aproximate last one year.
Weekly one or two time again the problem.
morning server stat time only the problem .
The dolphin card remove and re-insert the problem solved ?

 |  IP: Logged

Dave Macaulay
Film God

Posts: 2321
From: Toronto, Canada
Registered: Apr 2001


 - posted 09-29-2014 06:16 AM      Profile for Dave Macaulay   Email Dave Macaulay   Send New Private Message       Edit/Delete Post
This is probably just a communication error with the dolphin board: reseating this board and its ethernet cable is the first thing to do. Note the dolphin board has a cooling shroud that needs to be removed, also an extra mounting screw at the back of the card that has to be removed, and the card has the tamper detecting covering that will disable it if you handle it too roughly.
The motherboard or the dolphin board could be failing/defective.

 |  IP: Logged

Annli Com
Expert Film Handler

Posts: 140
From: ShibuPaul-India
Registered: May 2014


 - posted 09-29-2014 08:03 AM      Profile for Annli Com   Author's Homepage   Email Annli Com   Send New Private Message       Edit/Delete Post
Sir
We change the dolphin card one time, but same again.

 |  IP: Logged

Marcel Birgelen
Film God

Posts: 3357
From: Maastricht, Limburg, Netherlands
Registered: Feb 2012


 - posted 09-29-2014 08:15 AM      Profile for Marcel Birgelen   Email Marcel Birgelen   Send New Private Message       Edit/Delete Post
If you already replaced the Dolphin card and you had EXCACTLY the same issues before, then it's most probably the motherboard that's faulty, like a problem with the PCI-x socket.

It could also be something else, like Dave already indicated: A problem with the internal Cat5e network connection, that cable is easily and cheaply replaced, so did you already try that?

Another thing that comes to mind is the seperate power connector that runs directly from the power supply via a standard Molex connector. There should be at least another free Molex power connector, you could try this as well.

 |  IP: Logged

Marco Giustini
Film God

Posts: 2713
From: Reading, UK
Registered: Nov 2007


 - posted 09-29-2014 05:23 PM      Profile for Marco Giustini   Email Marco Giustini   Send New Private Message       Edit/Delete Post
The Security manager is that little board which is connected to the motherboard by the USB hub and an ethernet cable. I would check that ethernet cable and the connections around.

 |  IP: Logged

Dave Macaulay
Film God

Posts: 2321
From: Toronto, Canada
Registered: Apr 2001


 - posted 09-30-2014 11:12 AM      Profile for Dave Macaulay   Email Dave Macaulay   Send New Private Message       Edit/Delete Post
No. The SM is a software component, I believe it is in the Dolphin card. That little board is the boot flash drive.

 |  IP: Logged

Marco Giustini
Film God

Posts: 2713
From: Reading, UK
Registered: Nov 2007


 - posted 09-30-2014 05:25 PM      Profile for Marco Giustini   Email Marco Giustini   Send New Private Message       Edit/Delete Post
Yes. The SM is the software running on the scb405 which is the part of the Dolphin card not covered by the black shell.

The card you mention is the USB hub, which happens to house the SSD drive.

From Doremi:
quote:
DOL12 (Dolphin DCI FIPS 1.2) and the SM (Security Manager also know as scb405), this picture shows the (top) the power connection to the scb405 and the (lower) is the RJ45 network connection, that goes to the USB hub.

 |  IP: Logged
