» Film-Tech Forum   » Operations   » Digital Cinema Forum   » Who works with Dolby NA10 Network automation Interface?


Author Topic: Who works with Dolby NA10 Network automation Interface?
Alexander Tarakin
Film Handler

Posts: 16
From: Israel - Ramat Gan
Registered: Aug 2012


 - posted 11-27-2013 06:56 AM      Profile for Alexander Tarakin   Author's Homepage   Email Alexander Tarakin   Send New Private Message       Edit/Delete Post
Hello,

Did someone work with this product? or currently working with it?
Is he good and reliable? how much does it cost?

Thank you!

 |  IP: Logged

Marco Giustini
Film God

Posts: 2500
From: Reading, UK
Registered: Nov 2007


 - posted 11-27-2013 09:49 AM      Profile for Marco Giustini   Email Marco Giustini   Send New Private Message       Edit/Delete Post
I think you'd better find something else unless you get one for free! [Smile] The upside is that being a Dolby product you connect to a Dolby server and your cues are automatically downloaded. But it's quite limited and its ethernet link is not very reliable.
I wouldn't buy one, if you get one for free - or almost for free - go for it. Otherwise find something else.

 |  IP: Logged

Gordon McLeod
Film God

Posts: 9390
From: Toronto Ontario Canada
Registered: Jun 99


 - posted 11-27-2013 10:59 AM      Profile for Gordon McLeod   Email Gordon McLeod   Send New Private Message       Edit/Delete Post

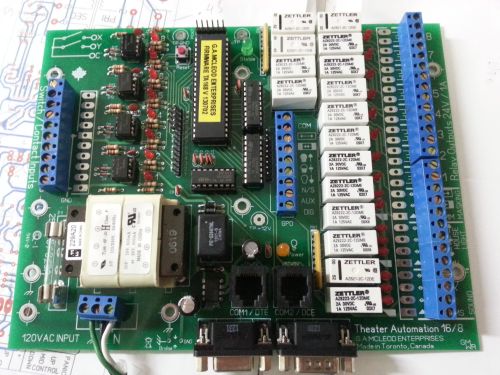

We had so many problems with the NA10 that we developed our own RS232 automation to replace it
 -

 |  IP: Logged

Sam D. Chavez
Phenomenal Film Handler

Posts: 1977
From: Martinez, CA USA
Registered: Aug 2003


 - posted 11-27-2013 11:58 AM      Profile for Sam D. Chavez   Author's Homepage     Send New Private Message       Edit/Delete Post
I have a number of local cinemas using these but they have been out of production for quite a while now.

They were quite expensive but all are working reliably though.

 |  IP: Logged

Alexander Tarakin
Film Handler

Posts: 16
From: Israel - Ramat Gan
Registered: Aug 2012


 - posted 11-27-2013 04:13 PM      Profile for Alexander Tarakin   Author's Homepage   Email Alexander Tarakin   Send New Private Message       Edit/Delete Post
Dear Sam, can you tell me the price of one unit?

 |  IP: Logged

Sam D. Chavez
Phenomenal Film Handler

Posts: 1977
From: Martinez, CA USA
Registered: Aug 2003


 - posted 11-27-2013 05:39 PM      Profile for Sam D. Chavez   Author's Homepage     Send New Private Message       Edit/Delete Post
If memory serves, it was $3,450 list price which is one reason it did not sell very well.

 |  IP: Logged

Steve Guttag
We forgot the crackers Gromit!!!

Posts: 11749
From: Annapolis, MD
Registered: Dec 1999


 - posted 11-27-2013 06:22 PM      Profile for Steve Guttag   Email Steve Guttag   Send New Private Message       Edit/Delete Post
It was a lot of money for just some relays in a box that only worked via Ethernet and only with one brand of server.

 |  IP: Logged

Alexander Tarakin
Film Handler

Posts: 16
From: Israel - Ramat Gan
Registered: Aug 2012


 - posted 11-29-2013 08:18 AM      Profile for Alexander Tarakin   Author's Homepage   Email Alexander Tarakin   Send New Private Message       Edit/Delete Post
Is there a product that does the same job and worth baying?

 |  IP: Logged

Carsten Kurz
Film God

Posts: 3279
From: Cologne, NRW, Germany
Registered: Aug 2009


 - posted 11-29-2013 09:38 AM      Profile for Carsten Kurz   Email Carsten Kurz   Send New Private Message       Edit/Delete Post
Not with a Dolby server and through Ethernet, AFAIK.

- Carsten

 |  IP: Logged

Steve Guttag
We forgot the crackers Gromit!!!

Posts: 11749
From: Annapolis, MD
Registered: Dec 1999


 - posted 11-29-2013 10:08 AM      Profile for Steve Guttag   Email Steve Guttag   Send New Private Message       Edit/Delete Post
Not via Ethernet...only via RS232. I strongly recommend the Eprad/Strong eCNA series (eCNA5 and the eCNA10). They have at least 16 relay outputs, 6 analog inputs, can control 5 Ethernet devices and are expandable as needed. The eCNA5 is a bit less than $1000 US

On the lower cost front, many use the JNIOR automation.

On the least cost front, one can use the DSS' built in I/O relays...and they are indeed relays. By modifying an XML file, you can have the cues say what you want, control them as Latched or pulsed (and set the duration of the pulse).

 |  IP: Logged

Steve Guttag
We forgot the crackers Gromit!!!

Posts: 11749
From: Annapolis, MD
Registered: Dec 1999


 - posted 11-29-2013 12:11 PM      Profile for Steve Guttag   Email Steve Guttag   Send New Private Message       Edit/Delete Post
Correction...8 GPI inputs (minimum). As Strong normally configures it, the eCNA 10 comes with an optional I/O module that extends it by another 8 relay outputs and 8 GPI inputs.

 |  IP: Logged

Mark Gulbrandsen
Resident Trollmaster

Posts: 15887
From: Bountiful, Utah
Registered: Jun 99


 - posted 12-02-2013 08:13 PM      Profile for Mark Gulbrandsen   Email Mark Gulbrandsen   Send New Private Message       Edit/Delete Post
I actually never had any real issues with them at all. They always just seemed to work fine doing what they were designd to do. I am actually re-installing two used ones a customer bought in a couple of weeks and another used one with a DSS-200 after those go in. They are used just to control lights and it's a neater thing than dealing with the GPIO and some relays... plus there is plenty of future expansion. Ok for small simple venues. Not for more complicated ones though...

Mark
