Hi again...
I connected J6 (DA20) to J18 (CP65) with a 25pin DB cable as described in the manuals. Something went wrong because now all the lights flash on the DA20...
Help? anyone deal with this one before??

Also still need to clarify what pin 1 is on the digital soundhead

thanks

 |  IP: Logged

Garry Knapp
Film Handler

Posts: 50
From: Mississauga Ontario Canada
Registered: Oct 2016


 - posted 01-21-2017 10:04 AM      Profile for Garry Knapp   Author's Homepage   Email Garry Knapp   Send New Private Message       Edit/Delete Post
ok....after tracing a few things i found the problem. It was a short in the digital cable...
Just need pin 1 now
tks [Smile]

 |  IP: Logged

Garry Knapp
Film Handler

Posts: 50
From: Mississauga Ontario Canada
Registered: Oct 2016


 - posted 02-02-2017 02:13 AM      Profile for Garry Knapp   Author's Homepage   Email Garry Knapp   Send New Private Message       Edit/Delete Post
I must have fried something. i'm not getting 15v where i should be. does anyone know these units? which card controls the output voltage to the reader?

 |  IP: Logged

Mark Gulbrandsen
Resident Trollmaster

Posts: 16233
From: Bountiful, Utah
Registered: Jun 99


 - posted 02-02-2017 04:46 PM      Profile for Mark Gulbrandsen   Email Mark Gulbrandsen   Send New Private Message       Edit/Delete Post
Without pulling out the manual I wold guess the video acquisition card, but perhaps Sam or Steve know the exact answer to this. Of all the DD cards I've had fail that's the most often failed card for me.

Mark

 |  IP: Logged

Stephan Shelley
Jedi Master Film Handler

Posts: 704
From: castro valley, CA, usa
Registered: Nov 2014


 - posted 02-02-2017 05:29 PM      Profile for Stephan Shelley   Email Stephan Shelley   Send New Private Message       Edit/Delete Post
Are you saying that the LED for the +15 and/or the -15 on the cat 611 card is no longer lit? That is the right hand most card. The one you set the offsets on. If that is the case you may have done in the power supply.

 |  IP: Logged

Sam D. Chavez
Film God

Posts: 2088
From: Martinez, CA USA
Registered: Aug 2003


 - posted 02-02-2017 07:25 PM      Profile for Sam D. Chavez   Author's Homepage     Send New Private Message       Edit/Delete Post
To add to Stephan's advice as a first step, any time you make a mistake or have a mishap with a video cable you are likely to fry the video board on the DA20 or the CCD board on the reader or sometimes both. There are plenty of spare parts around for DA20's and Dolby readers.

Before anything, I would lose the existing cable cable and use a known good one so you don't risk losing another video card.

 |  IP: Logged

Mark Gulbrandsen
Resident Trollmaster

Posts: 16233
From: Bountiful, Utah
Registered: Jun 99


 - posted 02-03-2017 01:01 PM      Profile for Mark Gulbrandsen   Email Mark Gulbrandsen   Send New Private Message       Edit/Delete Post
If you need a factory cable just let me know. I have several on the shelf and I'd be happy to send one. I think the ones I have are 30 feet long.

Mark

 |  IP: Logged

Garry Knapp
Film Handler

Posts: 50
From: Mississauga Ontario Canada
Registered: Oct 2016


 - posted 02-04-2017 04:30 AM      Profile for Garry Knapp   Author's Homepage   Email Garry Knapp   Send New Private Message       Edit/Delete Post
Thank you for all the input [Smile]
I made this cable so I don't trust it as i've never made one before. I'm not even sure what pin 1 is on the reader...i may have plugged it on backwards for all i know. The power LED is lit on the front of the DA20 but i'm not reading any voltage at the reader. If i blew a board thats ok, I just need to find which one it is and get it switched out.

 |  IP: Logged

Steve Guttag
We forgot the crackers Gromit!!!

Posts: 12218
From: Annapolis, MD
Registered: Dec 1999


 - posted 02-04-2017 09:54 AM      Profile for Steve Guttag   Email Steve Guttag   Send New Private Message       Edit/Delete Post

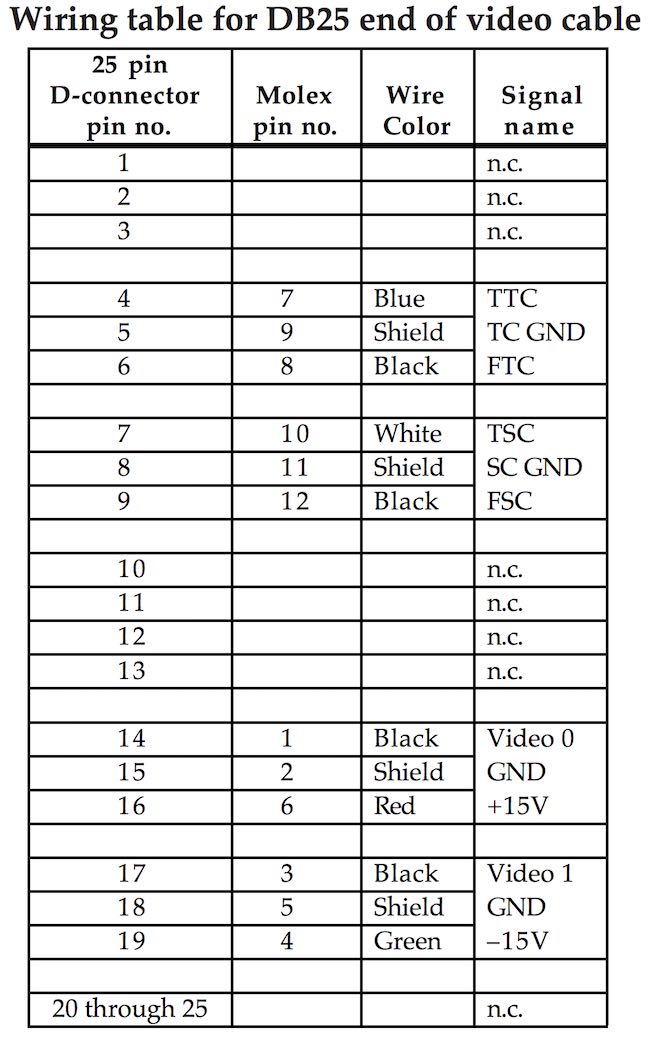

Here is the pinout (from one of the various manuals):

 -

 |  IP: Logged

Garry Knapp
Film Handler

Posts: 50
From: Mississauga Ontario Canada
Registered: Oct 2016


 - posted 02-06-2017 04:03 AM      Profile for Garry Knapp   Author's Homepage   Email Garry Knapp   Send New Private Message       Edit/Delete Post
Hi Steve...thats the map I used to create this cable...not to say that I trust it 100% but according to this, I believe I have it wired correctly. I'd love to have it inspected by you, preferably...
