» Film-Tech Forum ARCHIVE   » Operations   » Film Handlers' Forum   » Frame marking of Technicolor 3D prints

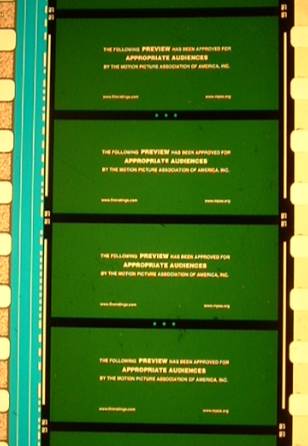

Author Topic: Frame marking of Technicolor 3D prints Louis Bornwasser Film God Posts: 4441 From: prospect ky usa Registered: Mar 2005 posted 04-04-2010 10:32 AM                        If you look at the films scanned in on another topic, you will see 2 dots that define the frame line and a bar that means "do not cut here." This assists splicing so that the left eye and right eye don't reverse. I think this is a truly WONDERFUL idea. This should be extended to ALL prints of all titles. Finding the frame in a sea of darkness/confusion would end in one day. Louis  |  IP: Logged Jim Cassedy Phenomenal Film Handler Posts: 1661 From: San Francisco, CA Registered: Dec 2006 posted 04-04-2010 11:28 AM                     Louis- I was just discussing the exact same topic with a fellow projectionist last night and we were saying the same thing. One of the really great things about the way they've done it is that the frame markings are visable even "in the black", so if you have a reel with a fade out or a really dark scene at the head or tail, it almost eliminates the possibility that you'll make a mis-framed splice when assembling a print unless you're really lame.  |  IP: Logged Jack Theakston Master Film Handler Posts: 411 From: New York, USA Registered: Sep 2007 posted 04-04-2010 11:47 AM                     Since no one reads or pays attention to seemingly anything that doesn't entail their lives at stake, this seems like a wasted concept to those who might build the show up correctly, but end up projecting it two-perfs out and not knowing what the hell they did.  |  IP: Logged Mike Olpin Chop Chop! Posts: 1852 From: Dallas, TX Registered: Jan 2002 posted 04-04-2010 12:57 PM                     The picture from the other thread, originally uploaded by Jim Cassedy.  |  IP: Logged Monte L Fullmer Film God Posts: 8367 From: Nampa, Idaho, USA Registered: Nov 2004 posted 04-04-2010 02:33 PM                     quote: Since no one reads or pays attention to seemingly anything that doesn't entail their lives at stake, this seems like a wasted concept to those who might build the show up correctly, Oh, I dunno about this - If a cinema is going to prime themselves up for this form of presentation, I'm pretty sure that operation personnel will be more in strict accordance to follow the rules on film assemblies simply due to that if the print wasn't built correctly, that's a whole house refund that takes place due to the film will be deemed unplayable..and the nasty dung ball, where-ever it comes from, will roll over those in charge.  |  IP: Logged Louis Bornwasser Film God Posts: 4441 From: prospect ky usa Registered: Mar 2005 posted 04-04-2010 04:05 PM                        Looks good, doesn't it? Louis  |  IP: Logged Jeremy Weigel Phenomenal Film Handler Posts: 1062 From: Edmond, OK, USA Registered: Mar 2007 posted 04-04-2010 06:18 PM                     This would have been really nice to have last night when I had a malfunction of my automation on Hot Tub Time Machine. The projector stopped, but the lamp stayed on with c/o open and burned the film in a lengthy dark scene and just my luck my flashlight batteries went dead after only a few seconds (rechargeables). For expediency, I ended up just cutting out the 12 sprocket holes (3 frames worth) containing the burnt/bubbled film (not knowing for sure if it was actually cut on a frame line and splicing 2 different scenes together ), clear splicing it and getting the picture back on screen. I also wasn't sure if I got it threaded back in frame, but I did.  |  IP: Logged Richard P. May Expert Film Handler Posts: 243 From: Los Angeles, CA Registered: Jan 2006 posted 04-05-2010 09:51 AM                     This is coming back to the sensible days when the film stock had a mark between sprocket holes every four perfs. With multiple sound tracks on today's prints, that isn't practical, but Technicolor is to be commended if they expand this new marking to all prints, regardless of format.  |  IP: Logged Joe Redifer You need a beating today Posts: 12859 From: Denver, Colorado Registered: May 99 posted 04-05-2010 02:11 PM                        T3D's markings would seep into the picture area of real movies. It only works for T3D movies. But the area between the perfs on the non-soundtrack side are completely available. A dot on every frameline would suffice.  |  IP: Logged Darryl Spicer Film God Posts: 3250 From: Lexington, KY, USA Registered: Dec 2000 posted 04-05-2010 03:24 PM                    quote: Monte L Fullmer film will be deemed unplayable If the frame line was accidently cut and spliced on the L/R divider line a simple two sprocket adustment with the framing knob would correct the issue of the 3-D not playing correctly so it can still be playable with a framing adjustment.  |  IP: Logged Ian Parfrey Phenomenal Film Handler Posts: 1049 From: Imbil Australia 26 deg 27' 42.66" S 152 deg 42' 23.40" E Registered: Feb 2009 posted 04-11-2010 06:50 AM                     Pale magenta frame markings a la Eastman and Fuji stock idents can still be used to mark frames. Not that the outside-perf area is used all that much now that SDDS is dead anyway, so there is a prime place for frame marking. The magenta markings wont be read by the readers. Failing that, use the AGFA method of frame marking with an amber ident that is not visible to Dolby Digital readers either. And the labs can do us all a favour and put frame lines on heads, tails, trailers and studio logos. Makes life so much easier and just that little bit more fool-proof.  |  IP: Logged Demetris Thoupis Phenomenal Film Handler Posts: 1240 From: Aradippou, Larnaca, Cyprus Registered: Apr 2001 posted 04-11-2010 08:39 AM                     quote: Joe Redifer T3D's markings would seep into the picture area of real movies. It only works for T3D movies. Joe are you still going on about the Terminator 3D ???  |  IP: Logged
