Author Topic: Would like feedback on my flat aperture plate
Justin Hamaker
Film God

Posts: 2106
From: Lakeport, CA USA
Registered: Jan 2004


 - posted 08-05-2008 08:20 AM      Profile for Justin Hamaker   Author's Homepage   Email Justin Hamaker   Send New Private Message       Edit/Delete Post
Despite what some have implied about my presentation 'ethic' based on my posts on Film-Tech, I do strive to improve my presentation. To that end, I spent the last couple hours filing a new flat aperture plate for one of my houses because this one had a problem of showing sound track. I've posted the before and after pictures.

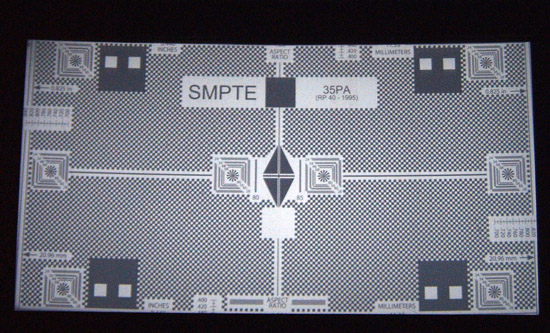

Before
 -

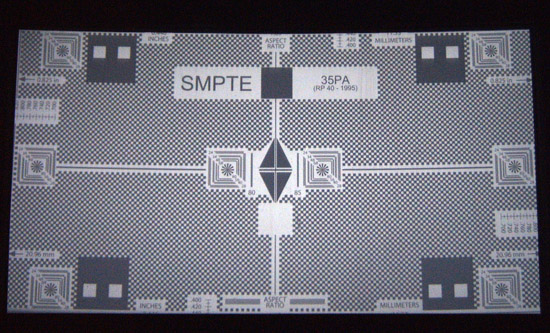

After
 -

After taking these images I realized I can adjust the vertical edge of my masking and I will do that the next time I get a chance.

Any comments about improving this picture would be appreciated.

 |  IP: Logged

Brian Guckian
Jedi Master Film Handler

Posts: 594
From: Dublin, Ireland
Registered: Apr 2003


 - posted 08-05-2008 02:17 PM      Profile for Brian Guckian   Email Brian Guckian   Send New Private Message       Edit/Delete Post
Great work! Your hard labour has paid off.

You could also look at re-centring the 1.85 lens very slightly (if possible) to bring the 0.825 ins line on the left closer again to the masking - assuming your side masking edges are plumbed vertical and are centred. (Is your Scope done common height in this screen BTW?). There looks like some "give" on the right-hand side of the image that might allow you to nudge the lens over ever so slightly.

Seems to be no mercy for going outside the 0.825 lines at all today, particularly on the soundtrack side with many DTS tracks printed on clear backgrounds - not that going outside the projectable image area is acceptable, just that there seems to be zero margin for error.

Well done for striving to get it right [thumbsup]

 |  IP: Logged

Brad Miller
Administrator

Posts: 17674
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99


 - posted 08-05-2008 09:25 PM      Profile for Brad Miller   Author's Homepage   Email Brad Miller       Edit/Delete Post
To really be able to tell you would have to link to a much larger image and take the photograph with the cleaning lights on and the masking open to scope (assuming side masking).

 |  IP: Logged

Justin Hamaker
Film God

Posts: 2106
From: Lakeport, CA USA
Registered: Jan 2004


 - posted 08-05-2008 09:32 PM      Profile for Justin Hamaker   Author's Homepage   Email Justin Hamaker   Send New Private Message       Edit/Delete Post
Ok, I'll try to get a bigger image. Would I still upload the image to Film-Tech. I'm just asking because of the deal about 550 pixel width on the upload page.

 |  IP: Logged

Chris Slycord
Film God

Posts: 2986
From: 퍼항시, 경상푹도, South Korea
Registered: Mar 2007


 - posted 08-05-2008 09:57 PM      Profile for Chris Slycord   Email Chris Slycord   Send New Private Message       Edit/Delete Post
If you click above Brad's face it'll show you his profile (and email addy) and you could email him the giant pic

 |  IP: Logged

Monte L Fullmer
Film God

Posts: 8301
From: Nampa, Idaho, USA
Registered: Nov 2004


 - posted 08-06-2008 01:22 AM      Profile for Monte L Fullmer   Email Monte L Fullmer   Send New Private Message       Edit/Delete Post
(clik on his name...) If Brad's No.2, who is No.1 ?

 |  IP: Logged
