» Film-Tech Forum ARCHIVE   » Operations   » Film Handlers' Forum   » Neumade platter brain wiring issue


Author Topic: Neumade platter brain wiring issue
Cory Isemann
Jedi Master Film Handler

Posts: 500
From: White Plains, MD, USA
Registered: Jun 2004


 - posted 06-11-2006 10:40 AM      Profile for Cory Isemann   Author's Homepage   Email Cory Isemann   Send New Private Message       Edit/Delete Post
Ordered some emitter-detector boards from Neumade a few months back and never got a good look at it until today... there are 4 solder points on the newer board, but only 3 on the older one. Will one of these points be unused or will it need to be jumpered? I can't upload the pictures right now, but is anyone familiar with this?

Edit: add shitty picture

 -

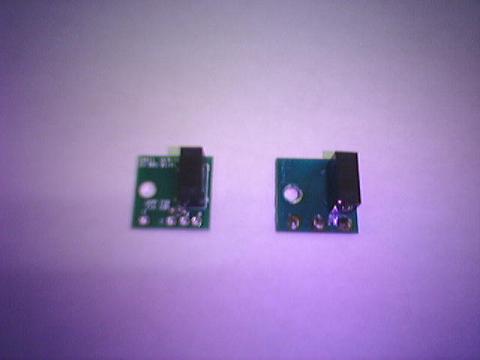

New one on the left, old on the right.

[ 06-12-2006, 10:20 AM: Message edited by: Cory Isemann ]

 |  IP: Logged

Stephen Frazza
Expert Film Handler

Posts: 161
From: Nutley, NJ, USA
Registered: Mar 2004


 - posted 06-12-2006 01:23 AM      Profile for Stephen Frazza   Author's Homepage   Email Stephen Frazza   Send New Private Message       Edit/Delete Post
The same thing happened to me about a year ago and I just called Neumade and they gave me the answer. But I can't remember what that answer is right now.
I don't work again for a few days but if you still need a answer by then I'll open up one of my brains and let you know.

 |  IP: Logged

John Walsh
Film God

Posts: 2490
From: Connecticut, USA, Earth, Milky Way
Registered: Oct 1999


 - posted 06-14-2006 04:32 PM      Profile for John Walsh   Email John Walsh   Send New Private Message       Edit/Delete Post

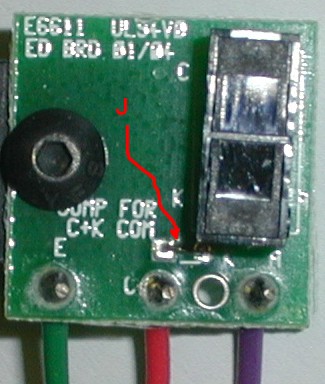

The hookup is the same. The sensor itself has four terminals. Two for the IR LED, ("A" anode and "K" cathode) - and two for the photo 'receiver' ("C" and "E".) On the old board, "C" and "K" are connected together by a copper trace. On the new board, there is a little jumper (shown in picture pointed at by "J") that connects "C" and "K".

 -

 |  IP: Logged

Cory Isemann
Jedi Master Film Handler

Posts: 500
From: White Plains, MD, USA
Registered: Jun 2004


 - posted 06-15-2006 02:04 PM      Profile for Cory Isemann   Author's Homepage   Email Cory Isemann   Send New Private Message       Edit/Delete Post
Thanks John..So pretty much you're skipping that third contact.. wire colors still in the same order too? It would seem so.

 |  IP: Logged
